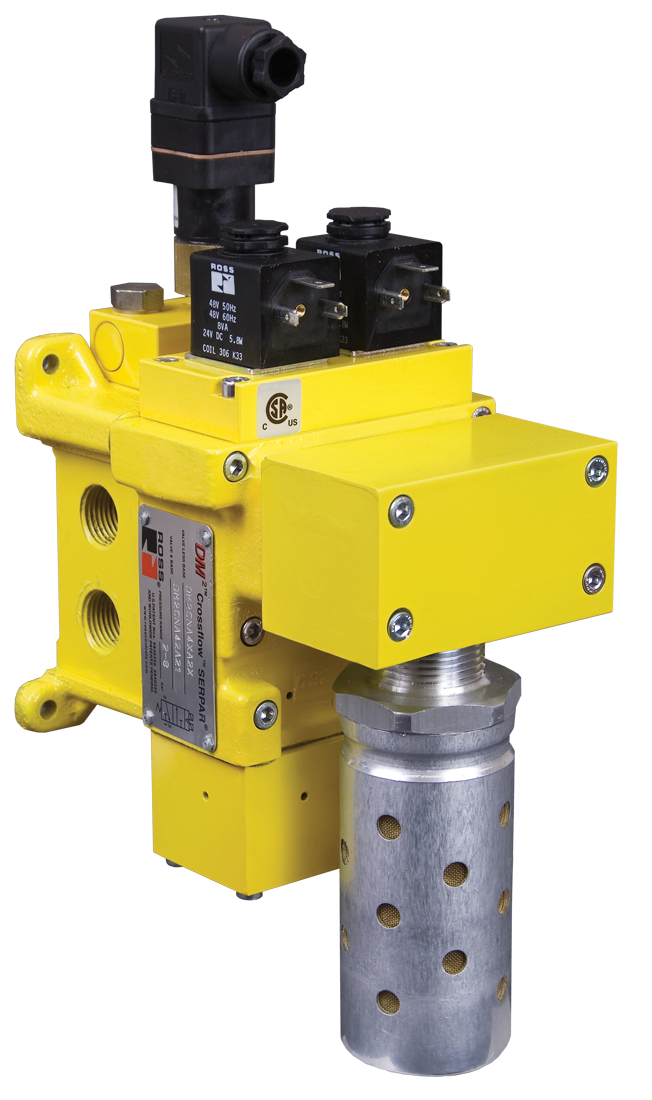

DM2C Series Double Valve Safety Category 4 PL e, Internal Monitoring, Manual Reset

Actual product may differ from above image. Product details should be verified before purchase.

Redundant control can achieve Category 4, PL e, when used with proper safety controls
Dynamic Monitoring, and air flow control functions are simply integrated into two identical valve elements
Asynchronous movement of valve elements is detected by the dynamic monitoring and the valve latches in the safe condition, resulting in a residual outlet pressure of less than 1% of supply
Manual valve reset
Poppet design that is dirt tolerant, wear compensating for quick response and high flow capacity
PTFE backup piston rings enhances valve endurance enabling operation with or without in-line lubrication
Includes a pressure switch with both normally open (NO) and normally closed (NC) contacts to provide status feedback to the control system indicating whether the valve is in the lockout or ready-to-run condition
High flow, clog resistant silencer included
Base mounted for ease of valve replacement, captive valve-to-base mounting screws
Inlet and outlet ports on both sides (plugs for unused ports included)
SISTEMA Library available for download
